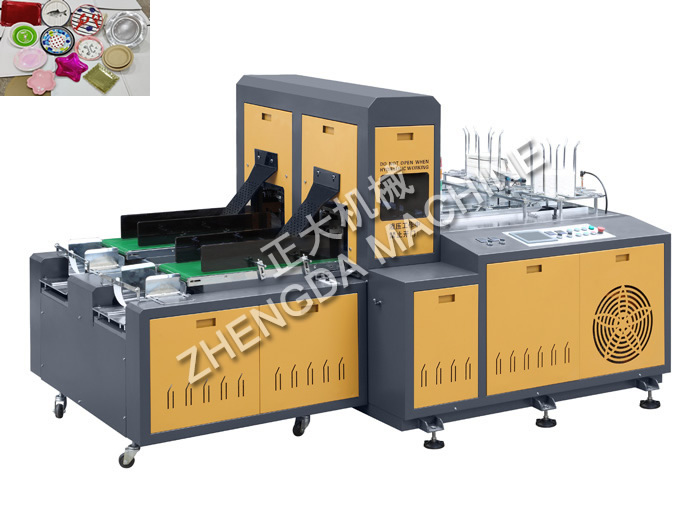

JBZ-500 Automatic Paper Plate Machine

Applications

JBZ-500 Automatic Paper Plate Machine is a new improved machine ,which was developed and researched in order to meet the market requirement .It has equipped with the automatic collection device ,which makes it has the functions of automatic pneumatic suction paper feeding ,automatic thermoforming ,the disc and constant temperature control ,automatic counting ,etc . JBZ-500 Automatic Paper Plate Machine adopts high efficient combination of hydraulic cylinder. It is widely applied to make paper plate or aluminum foil laminated paper plate in round (rectangle, square, circular, or irregular) shape. The characteristics of the machine are quickly production speed, more stable performance, high safety operation, more convenient maintenance and more humanized structure design

It can produce all kinds of size paper plate by changing the mold

Main Technical Parameter

Paper Size 4-12 Inch
Production Speed 100-140 pcs/min
Air Pressure 0.3 m3/min
Row material 140-1000g/m2 original paper or PE coated paper
Power Voltage 380V 50Hz
Total Power 9.0KW
Weight 2000Kg
Package size 3000L×1700W×1700H(mm)

* We can make the machine  for your requirement.
