ZD-420 Cup Lid Making Machine
Applications

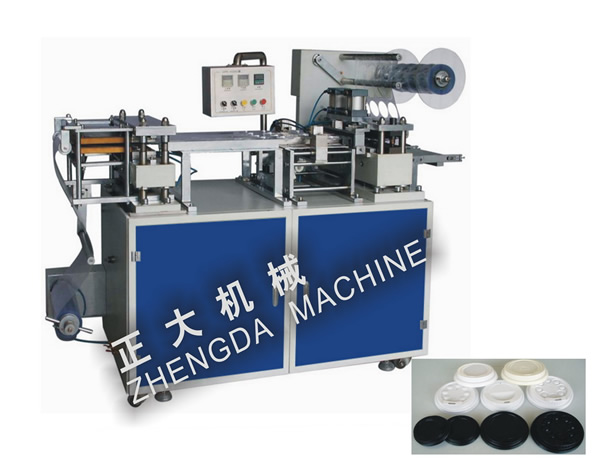

ZD-420 Full-automatic Cup Lid Making Machine
1、compact configuration\calm run\easy manipulation\convenient maintenance.
2、steplessly variable frequency speed regulating, PC circuit control panel.
3、adjustable travel, convenient for replacing mould.
4、adopts manipulator grip, has accurate synchronization.
5、can design any mold according to customers’ advice.
1、compact configuration\calm run\easy manipulation\convenient maintenance.
2、steplessly variable frequency speed regulating, PC circuit control panel.
3、adjustable travel, convenient for replacing mould.
4、adopts manipulator grip, has accurate synchronization.
5、can design any mold according to customers’ advice.
Main Technical Parameter
| Raw material Suitable paper weight | PVC、 PET、 PS |
| Maximum blanking speed | 20-45times/min |
| Stroke range | 30-160 MM |
| Maximum forming depth | 28--50MM |
| Power of supply | 4KW |
| Water pressure | >0.2M 3/MIN |
| Air pressure: | 0.4-0.7MPA |
| Weight | 850KG |
| Outline dimensions of machine | 2500*900*1700MM |
Remark
Can design any mold according to customers' advice.
